Matte Green White Engraving Laminate
Color Structure:
Smooth matte medium-green face / Continuous white core and backSheet Structure:
Two-ply front-engraving laminate with a thin colored face layerBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth matte, low-reflection greenEngraved Result:
Shallow recessed white text, symbols and line graphicsAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderApplications and Options:
Laboratory cabinets, instrument identification, sample-storage labels, indoor facility identification and OEM labels; adhesive backing or project-specific performance grades available subject to review
Matte Green White Engraving Laminate LYS-7002 has a smooth low-reflection medium-green face over one continuous white core. Shallow front engraving removes the thin green cap and reveals permanent recessed white words, numbers and line graphics without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Typical B2B uses include laboratory cabinets, instrument identification, sample-storage labels, indoor facility identification and repeat OEM technical labels.
Model:LYS-7002
Stuur onderzoek
Productomschrijving
LYSHIRE MATTE GREEN / WHITE SERIES | LYS-7002
Matte Green White Engraving Laminate
Matte Green White Engraving Laminate LYS-7002 combines a smooth low-reflection medium-green face with one continuous white core in a two-ply front-engraving material. A shallow pass removes the thin green cap and exposes permanent recessed white words, numbers and line graphics. The contrast comes from the sheet structure rather than printed ink, applied vinyl, raised lettering or secondary paint fill.
Color StructureMatte Green / White Core
Engraved ResultRecessed White Reveal
Order RoutingLaser Acrylic / CNC ABS

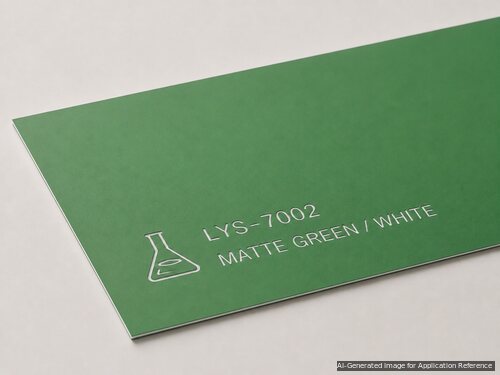

Matte Two-Ply Structure
Low-Reflection Green Face with a Continuous White Core
Smooth Matte Surface
The face is an even low-glare green without mirror reflection, metallic brushing, glitter or coarse particles. It supports readable interior identification under normal workplace lighting.
White Information Is Engraved In
Correct shallow engraving removes the thin green cap and reveals the white core below. The information remains recessed and cannot peel away like applied film or printed graphics.
Fine Detail for Repeat Production
The thin face layer supports small characters, numbering, icons and repeat OEM layouts when the process-specific base, tool path and engraving depth are matched to the job.
A Matte Material Route, Not a Gloss or Outdoor Claim
LYS-7002 is positioned as a general-purpose matte green / white engraving laminate. It is separate from LYSHIRE high-gloss green, textured green, mirror green, UV-resistant and outdoor-emergency materials. Website visuals show the typical 1.5 mm construction; the final thickness, base material and any performance option must be confirmed for the actual order.
Technical Data
LYS-7002 Product Parameters
| Color Structure | Smooth matte medium-green face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a thin colored face layer |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth matte, low-reflection green |
| Engraved Result | Shallow recessed white text, symbols and line graphics |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Applications and Options | Laboratory cabinets, instrument identification, sample-storage labels, indoor facility identification and OEM labels; adhesive backing or project-specific performance grades available subject to review |

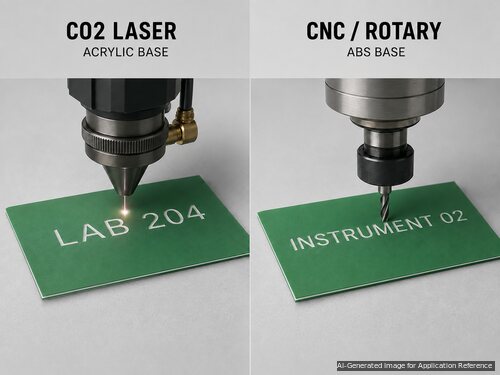

Processing
Separate Laser and CNC / Rotary Configurations
LYS-7002 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The matte green-and-white appearance remains coordinated, but the two process routes are separate order configurations rather than one universal sheet.
- Specify acrylic base for CO2 laser engraving and vector cutting
- Specify ABS base for CNC or rotary engraving and mechanical fabrication
- Test power, speed, tool geometry and engraving depth before batch production
Confirm the Base Material before Production
Do not assume the ABS version is the preferred CO2-laser sheet or that the acrylic version automatically replaces a mechanical-engraving order. Send the machine type, processing method, thickness, sheet size and finished application so the correct configuration can be quoted and sampled.

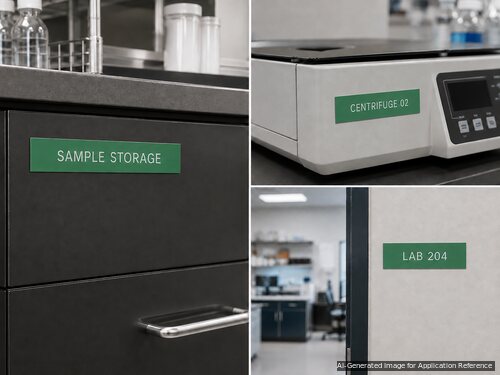

B2B Applications
Laboratory and Controlled-Workspace Identification
The low-reflection green face and recessed white information suit fabricators producing coordinated interior identification for laboratories, clean workspaces and technical facilities. Typical uses include:
- Sample-storage cabinet and drawer labels
- Laboratory instrument and equipment identifiers
- Room, work-zone and controlled-access area identification
- Rack, shelf and internal storage-location labels
- OEM technical labels requiring repeat green-and-white layouts
Identification Material, Not Automatic Medical or Safety Compliance
LYS-7002 provides a matte green / white material structure. The fabricator and end user remain responsible for verifying required wording, symbols, hygiene procedures, mounting method, durability grade and destination-market rules. State any disinfectant, chemical, UV or outdoor exposure before material selection.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies matte green / white engraving laminate to material distributors, industrial sign manufacturers, laboratory-identification fabricators, laser-processing companies and OEM buyers. Mixed products can be arranged within the standard 500-sheet MOQ, subject to material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm the matte surface, white reveal and selected processing route before bulk purchasing.
For an accurate quotation, provide the sheet size, thickness, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
What color appears after engraving LYS-7002?
Engraving removes the thin matte-green face layer and reveals the continuous white core as recessed text, numbers, symbols or line graphics.
Is the white information printed or paint filled?
No. The white is the core material below the green face. Correct engraving depth exposes it directly without printed ink, vinyl lettering or secondary paint filling.
Can LYS-7002 be ordered for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Which thicknesses and sheet sizes are available?
Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm. Standard size is 600 × 1200 mm, with 305 × 610 mm, 610 × 1220 mm and custom cutting available subject to order review.
Does the laboratory application image certify the finished label?
No. It is an application reference for the engraving material. The finished-label producer must verify the required substrate grade, cleaning resistance, wording, mounting and any applicable laboratory, medical or safety requirements.
